Module Settings Permission Matrix¶

Field-level permissions for the module settings tabs of TrustSource CE. For the codes, role abbreviations and the source of the tables, see the project settings matrix.

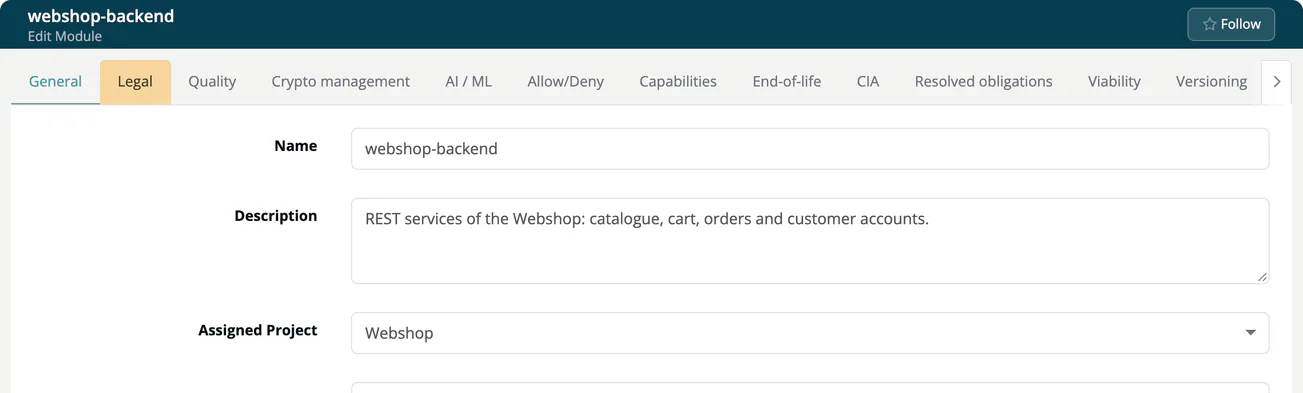

The module settings of webshop-backend with the tab bar General, Legal, Quality, Crypto management, AI / ML, Allow/Deny, Capabilities and more, an arrow to scroll to the remaining tabs, and the top of the General tab.

Roles are combined with OR. See Permission Model.

Note

Infrastructure modules hide the tabs Quality, Crypto management, AI / ML, Allow/Deny, Capabilities, Custom components, History and Export SPDX, whatever the rights say. The AI / ML tab has no rights of its own: it is shown together with Crypto management and follows the encryption rights.

Module settings: base rights¶

Each heading is a tab in the module settings. The columns are Dev, CM, PM, Mgr, AA, CCM and CSM.

General¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
name	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
version	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
description	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
projectId	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
tags	`rw`	`r`	`rw`	`r`	`r`	`r`	`r`
leanix	`r`	`r`	`r`	`r`	`r`	`r`	`r`
moduleIdentifier	`r`	`r`	`r`	`r`	`r`	`r`	`r`
architectureType	`r`	`r`	`r`	`r`	`r`	`r`	`r`
relatedUsers › defaultProjectManager	`r`	`r`	`rw`	`r`	`r`	`r`	`r`
relatedUsers › defaultComplianceManager	`r`	`r`	`rw`	`r`	`r`	`r`	`r`
relatedUsers › members	`r`	`r`	`r`	`r`	`r`	`r`	`r`
properties › privacy	`r`	`r`	`r`	`r`	`r`	`r`	`r`

Legal¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`r`	`r`	`r`	`r`	-	-	-
project	`r`	`r`	`r`	`r`	-	-	-
wizard	-	-	-	-	-	-	-
import_template	-	-	-	-	-	-	-
import_project	-	-	-	-	-	-	-
propagate	-	-	-	-	-	-	-

Resolved obligations¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
list	`r`	`r`	`r`	`r`	-	-	-
project	`r`	`r`	`r`	`r`	-	-	-
import	-	-	-	-	-	-	-
propagate	-	-	-	-	-	-	-

Viability¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
viabilityConfig › enabled	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
import	`rx`	-	-	-	-	-	-
warningThreshold	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
violationThreshold	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
minConfidence	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
noInfoLevel	`rw`	`r`	`r`	`r`	`r`	`r`	`r`

Versioning¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
versioningConfig › enabled	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
jump	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
import	`rx`	-	-	-	-	-	-
warningThreshold	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
violationThreshold	`rw`	`r`	`r`	`r`	`r`	`r`	`r`

CIA¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`r`	`r`	`r`	`r`	`r`	`rw`
import	`rx`	-	-	-	-	-	`rx`

Capabilities¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`rw`	`rw`	`rw`	`r`	`r`	`rw`
import	`rx`	`rx`	`rx`	`rx`	-	-	`rx`

Crypto management (and AI / ML)¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
import	`rx`	-	-	-	-	-	-

End-of-life¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
import	`rx`	-	-	-	-	-	-

Quality¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`r`	`r`	`r`	`r`	`r`	`r`
import	`rx`	-	-	-	-	-	-

History¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
analysis	`r`	`r`	`r`	`r`	-	-	-
scans	`r`	`r`	`r`	`r`	-	-	-

Allow/Deny¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
whitelist_license_approve	-	-	-	-	-	-	-
whitelist_license	`rw`	`r`	`r`	`r`	-	-	-
whitelist_component_approve	-	-	-	-	-	-	-
whitelist_component	`rw`	`r`	`r`	`r`	-	-	-
blacklist_license	`rw`	`r`	`r`	`r`	-	-	-
blacklist_component	`rw`	`r`	`r`	`r`	-	-	-

Allowed vulnerability¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
list	`rw`	`r`	`r`	`r`	`r`	`r`	`r`

Custom components¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
settings	`rw`	`r`	`r`	`r`	`r`	`r`	`r`

Export SPDX¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
export	`rx`	`rx`	`rx`	`rx`	-	-	-

Danger Operations¶

Setting	Dev	CM	PM	Mgr	AA	CCM	CSM
delete	`rx`	-	-	-	-	-	-
delete_history	`rx`	-	-	-	-	-	-

Rights that depend on your relationship to the module¶

The tables above show the base rights. In the interface, three roles get different rights depending on how they relate to the module:

Context	When it applies
Default owner	The Manager is the default project manager of the module, or the Compliance manager is its default compliance manager, or no such default is assigned.
Member	A Developer is listed in the members of the module.
Non-member	A Developer is not a member while the module has members.

Note

These contexts control what the interface shows and lets you edit. The server checks role and company only, so membership and default ownership are not a security boundary in TrustSource CE 1.0. See Permission Model.

The next tables list only settings where at least one context differs from the base. All other roles always have their base rights. A · means the context does not define the setting; the app then grants no access from that role.

Context rights: General¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
name	`rw`	`rw`	`r`	`r`	`r`	`r`	`rw`
version	`rw`	`rw`	`r`	`r`	`r`	`r`	`rw`
description	`rw`	`rw`	`r`	`r`	`r`	`r`	`rw`
projectId	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
tags	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rwd`
leanix	`r`	`rw`	`r`	`r`	`r`	`r`	`rw`
architectureType	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
relatedUsers › defaultProjectManager	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
relatedUsers › defaultComplianceManager	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
relatedUsers › members	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
properties › privacy	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`

Context rights: Legal¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
settings	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
project	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
wizard	-	-	-	-	`rx`	-	`rx`
import_template	-	-	-	-	`rx`	-	`rx`
import_project	-	-	-	-	`rx`	-	`rx`
propagate	-	-	-	-	`rx`	-	`rx`

Context rights: Resolved obligations¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
list	`r`	`r`	`r`	`r`	`rw`	`r`	`rw`
project	`r`	`r`	`r`	`r`	`·`	`r`	`rw`
import	-	-	-	-	`rx`	-	`rx`
propagate	-	-	-	-	`rx`	-	`rx`

Context rights: Viability¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
viabilityConfig › enabled	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
import	`rx`	`rx`	`r`	-	`rx`	-	`rx`
warningThreshold	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
violationThreshold	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
minConfidence	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
noInfoLevel	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`

Context rights: Versioning¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
versioningConfig › enabled	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
jump	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
import	`rx`	`rx`	`r`	-	`rx`	-	`rx`
warningThreshold	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
violationThreshold	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`

Context rights: CIA, Crypto management, End-of-life, Quality¶

The same values apply to each of these tabs.

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
settings	`rw`	`rw`	`r`	`r`	`rw`	`r`	`rw`
import	`rx`	`rx`	`r`	-	`rx`	-	`rx`

Context rights: Capabilities¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
settings	`rw`	`rw`	`r`	`rw`	`rw`	`rw`	`rw`
import	`rx`	`rx`	`r`	`rx`	`rx`	`rx`	`rx`

Context rights: History¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
analysis	`r`	`r`	`r`	`r`	`rwd`	`r`	`rwd`

Context rights: Allow/Deny¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
whitelist_license_approve	-	-	-	-	`rx`	-	-
whitelist_license	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`
whitelist_component_approve	-	-	-	-	`rx`	-	-
whitelist_component	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`
blacklist_license	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`
blacklist_component	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`

Context rights: Allowed vulnerability¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
list	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`

Context rights: Custom components¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
settings	`rw`	`rw`	`r`	`r`	`rwd`	`r`	`rwd`

Context rights: Export SPDX¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
export	`rx`	`rx`	`r`	`rx`	`rx`	`rx`	`rx`

Context rights: Danger Operations¶

Setting	Dev base	Dev member	Dev non-member	CM base	CM default owner	Mgr base	Mgr default owner
delete	`rx`	`rx`	-	-	-	-	`rx`
delete_history	`rx`	`rx`	-	-	-	-	`rx`
